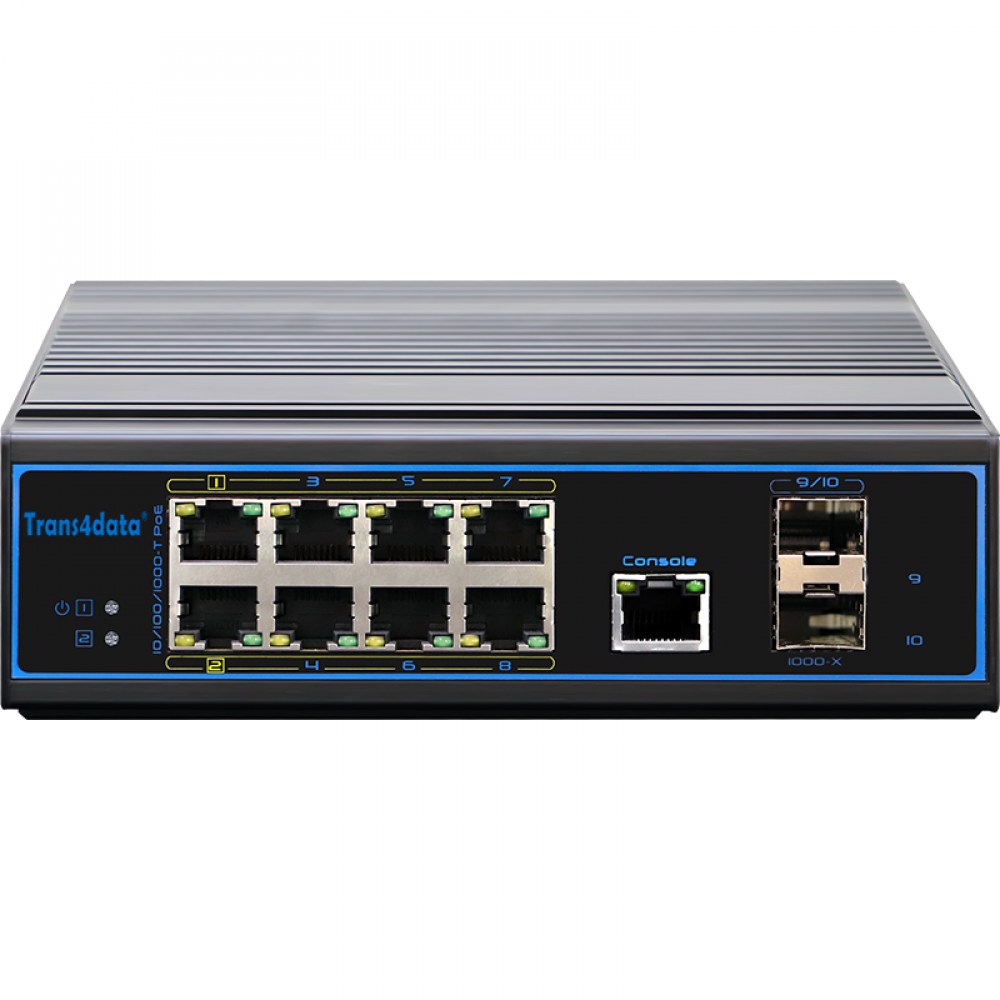

10 ports full gigabit managed industrial PoE switch, 2 ports support 90W
10 ports full gigabit managed industrial PoE switch, 2 ports support 90W

10 ports full gigabit managed industrial PoE switch, 2 ports support 90W

Model No.: TMIE7210P-2GF

  • 8*10/100/1000M PoE downlink ports, 2*1000M SFP ports, with L2 network management;
  • Supports 2 port PoE power each up to 90W,6 port PoE power each up to 30W;
  • Supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management;
  • 6KV surge protection, 8KV contact /15KV air ESD protection;
  • Supports working temperature -40℃～80℃;
  • 5 years warranty
Categories:Managed Industrial PoE Switches
Add To BasketGet A Quote
Tags:Layer 2 management10 ports full gigabit2 ports 90W output6KV surge protection 8KV/15KV ESD
OverviewFeaturesSpecificationOrder Information
TMIE7210P-2GF is a 10-port full gigabit industrial managed PoE switch that supports up to 8*10/100/1000M PoE downlink ports,
2* 1000M SFP ports. 8*10/100/1000M ports support PoE+, conforming to IEEE 802.3af/at standard, support 2 port PoE power each up to 90W,
6 port PoE power each up to 30W.

TMIE7210P-2GF supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management.
It supports 6KV surge protection, 8KV contact/15KV air ESD protection.

TMIE7210P-2GF supports wall hanging, desktop and Din-rail installation, reliable and durable, and can be used in security network video monitoring,
network engineering and other occasions

  • 8*10/100/1000M PoE downlink ports, 2*1000M SFP ports, with L2 network management;
  • Supports 2 port PoE power each up to 90W,6 port PoE power each up to 30W;
  • Supports L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management;
  • 6KV surge protection, 8KV contact /15KV air ESD protection;
  • Supports working temperature -40℃～80℃

Parameter

 Specifications

Power supply

Powered by power adaptor

Range of voltage

DC 48~57V

Consumption

Self consumption<20W

Downlink ports

Ports 1~2 10/100/1000Base-T 90W PoE RJ45(IEEE802.3bt,also support IEEE 802.3af/at)

3~8 10/100/1000Base-T 30W PoE RJ45(IEEE 802.3af/at)

Uplink ports

Ports 9~10 1000M SFP slots

Cable and distance

Use cat5e/6,100m max

Standard

IEEE802.3, IEEE802.3u, IEEE802.3z

Switch fabric

20Gbps

Though put

14.88Mpps

Buffer

1M

MAC address table

8K

Indicator

Power: 2 *red ;

Uplink 9~10: green LEDs indicate Link/Act

Downlink 1~8: On RJ45 green LEDs indicate Link/Act, yellow LEDs indicate PoE

Protection

Surge: 6KV, standard: IEC61000-4-5

ESD: 8KV: contact/15KV: air, standard:IEC61000-4-2

Working temperature

-40℃~80℃

Storage temperature

-40℃~85℃

Humidity

0~95%(No condensation)

Dimension(L×W×H)

165 mm×115 mm×50mm

Material

  Metal

Colour

Black

Net-weight

500g



L2 Features

Port configuration

Auto-negotiation



Flow Control

Port Mirror



Traffic statistics



Link Aggregation

Static link aggregation



LACP



Algorithm based on Source/Destination MAC



Algorithm based on Source/Destination IP



8 groups



8 ports per group



MAC Table

Aging Time



Static MAC address



Dynamic MAC address management



VLAN

4K Active VLANs



4K VID



802.1Q Tag VLAN



Port VLAN



Protocol VLAN



MAC VLAN



Management VLAN



Voice VLAN



Q-in-Q



Private VLAN



GARP/GVRP



ACL

64 ACLs



L2, L3 e L4



Time-based ACL



Spanning tree

802.1D Spanning Tree Protocol (STP)



802.1w Rapid Spanning Tree Protocol (RSTP)



802.1s Multiple Spanning Tree Protocol (MSTP)



Loop Guard



Root Guard



TC-BPDU Guard



BPDU Guard



BPDU Filter



Multicast

256 groups



IGMP v1/v2/v3



Fast Leave



Multicast VLAN



Static Multicast



Multicast Filter



IGMP Statistics



MLD Snooping



PoE management

Support total power consumption control



Support single port PoE ON/OFF



Support port output priority



QOS

4 priority queues



CoS port-based



CoS 802.1p-based



CoS DSCP-based



Scheduling algorithms SP, WRR, SP+WRR



Storm Control (Broadcast, Multicast, Unknown Unicast)



Bandwidth control per port



Security Features

Port Security



MAC address filter



ARP Association (Manual, ARP scanning, DHCP snooping) up to 200 entries



ARP Protection



DoS (Denial of Service)



Classification of packages based on: End.MAC, IP End, TCP / UDP Ports, Protocol Type



802.1x Autentication (port-based e MAC-based)



TACACS/TACACS+ Autentication



RADIUS Autentication



DHCP Filter



Guest VLAN



SSLv2/SSLv3/TLSv1



SSHv1/SSHv2



Restriction of WEB access based on: IP Address, And. MAC and Port



Port Isolation



Local User Name Password Authentication (2 levels)



Loopback detection



Management

SNMP v1/v2c/v3



RMON 4 grupos



WEB (HTTP/HTTPS)



CLI (Telnet, Console, SSHv1/v2)



Firmware upgrade via console/web/TFTP



Configuration Backup/Reload



All possible configurations in the CLI must exist in the WEB interface



LLDP



Other Features

DHCP Relay



DHCP Client



DHCP Snooping



DHCP Option 82



SNTP Client



BOOTP Client



Maintenance

Ping and Tracert



System log (Local and Remote)



Memory and CPU Monitoring



Software





Model

Description

TMIE7210P-2GF

8*10/100/1000M PoE ports, 2*1000M SFP ports,1~2 support 90W, 3~8 port support 30W;

2*48~57V DC;

Support L2 management, such as QoS, VLAN, MSTP, Multi-brocast, ports management and PoE management;

6KV surge protection, 8KV contact /15KV air ESD protection.
