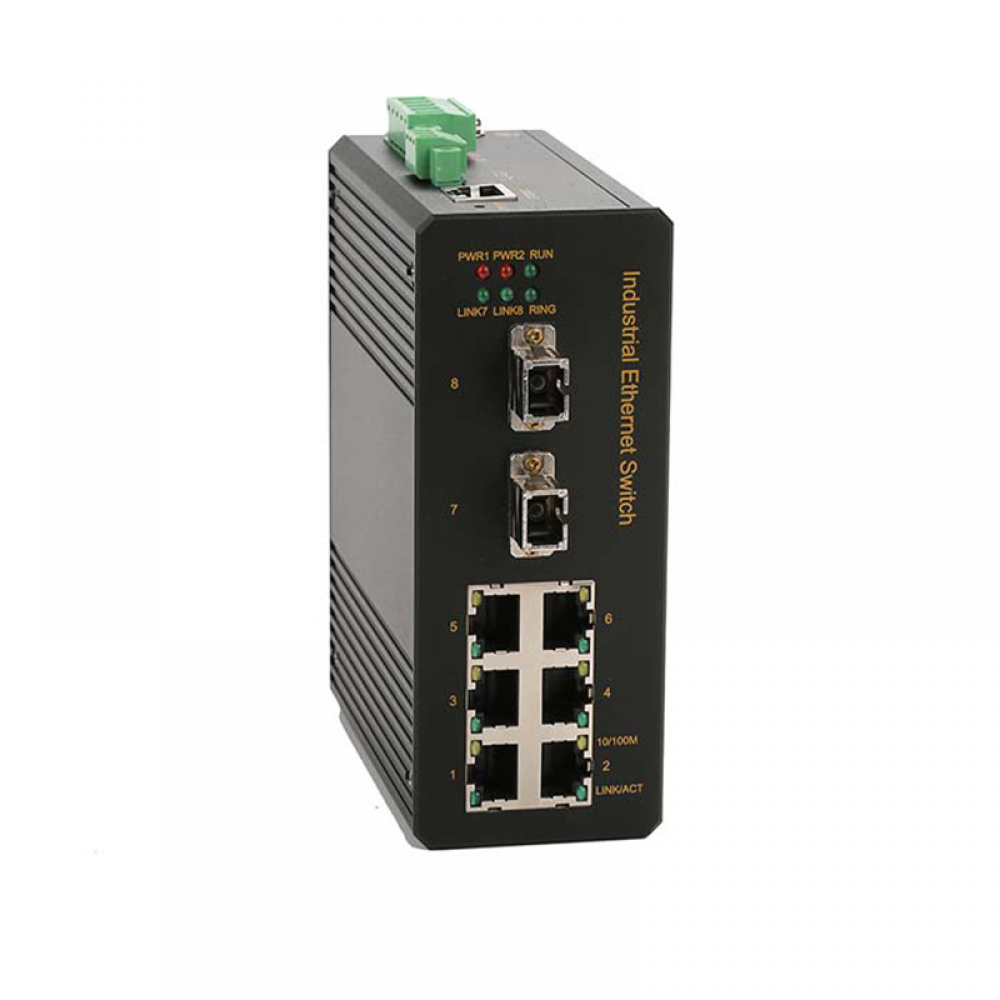

8 Ports 10/100Base layer 2 managed Din-rail industrial Ethernet switch with fiber By-pass function

TMIE6208BP-2F is the din-rail managed 10/100M industrial Ethernet switch designed and developed
for industrial high-speed communication network applications. This managed switch provides a high-end
industrial Ethernet communication solution for flexible industrial applications. It has 2 fiber ports and 6 copper ports,
and the fiber ports are 100Base-FX single-fiber bidirectional interface and supports BY-PASS function
which ensures the integrity of the fiber link

2x10/100BaseF(x) +6x10/100BaseT(x)
Supports BY-PASS (maintain network connectivity when the in-line system fails)
Supports static multicast/IGMP Snooping
Supports broadcast storm suppression/ Rate limit
Supports industrial grade dual power input backup
Supports independent dual redundant power supply configuration, support power loss, fiber drop, Broadcast storm alarm output
Supports VLAN/ Qos/ Port link aggregation /port mirroring
Industrial grade wide temperature/ fanless design

Software performance
Redundancy protocol	Support T-Ring and the recovery time<20ms. Support STP/RSTP
Multicast routing	Support IGMP snooping/ IGMP v1/v2/v3 Support GMRP Support static multicast
Management and maintenance	Support Console and Web management methods Support SNMPv1/v2c Support unified PC software management
Technical specifications
Ethernet Standard	IEEE802.3-10BaseT IEEE802.3u-100BaseTX/100Base-FX IEEE802.3x-Flow Control IEEE802.3z-1000BaseLX IEEE802.3ab-1000BaseTX IEEE802.1ab IEEE802.1D-Spanning Tree Protocol IEEE802.1w-Rapid Spanning Tree Protoco IEEE802.1Q -VLAN Tagging IEEE802.1p -Class of Service IEEE802.1X-Port Based Network Access Control
Switch properties
Priority queue	4
VLAN ID	1-4096
IGMP Groups	256
MAC table	2k
Switch Bandwidth	2Gbps
Switch Delay	<5μs
Interface
10/100Base ports	Port numbers: 8
	Connector: SC connector Single fiber bidirectional fixed FX or RJ45
	Baud rate:100Base-FX(fiber port), 10/100M for adaptive port
Console port	RS232/RJ45
Terminal block for power input	5.08mm terminal block
Terminal block for relay alarm	5.08mm terminal block,1A@24VDC
Communication distance
Twisted-pair	100m(CAT5/CAT5e cable)
Fiber	20km/40km/60km/80km
LED indicator lights
Front panel LED	Port light: LINK/ACT;SPEED;
	Running light: RUN
	Power LED: PWR1/PWR2
Power Requirements
Power input	DC12-48V(support dual power Redundant input)
Full-load consumption	<5W
Overload protection	support
Inversed protection	support
Redundancy protection	support
Working Environment
Operating Temperature	-40°C~80°C
Storage temperature	-40°C~85°C
Ambient Humidity	5%~95%( non-condensing)
Physical Characteristics
Shell	IP40 protection, aluminum alloy shell
Installation	35mm din rail-mounted installation
Dimension	54mmx138mmx110mm
Industry standard
EMC	EN61000-4-2(ESD), Level 4 EN61000-4-3(RS), Level 4 EN61000-4-4(EFT), Level 4 EN61000-4-5(Surge), Level 4 EN61000-4-6(CS), Level 4 EN61000-4-8, Level 5
Impact	IEC60068–2-27
Falling	IEC60068-2-32
Shock	IEC60068-2-6
Warranty
Warranty period	5 Years
Certification	CE/FCC/RoHS

TMIE6208BP-2F

2 10/100M Fx +6 10/100M Tx, layer 2 by-pass managed din rail industrial Ethernet switch, dual DC12~48V wide voltage power supply,
